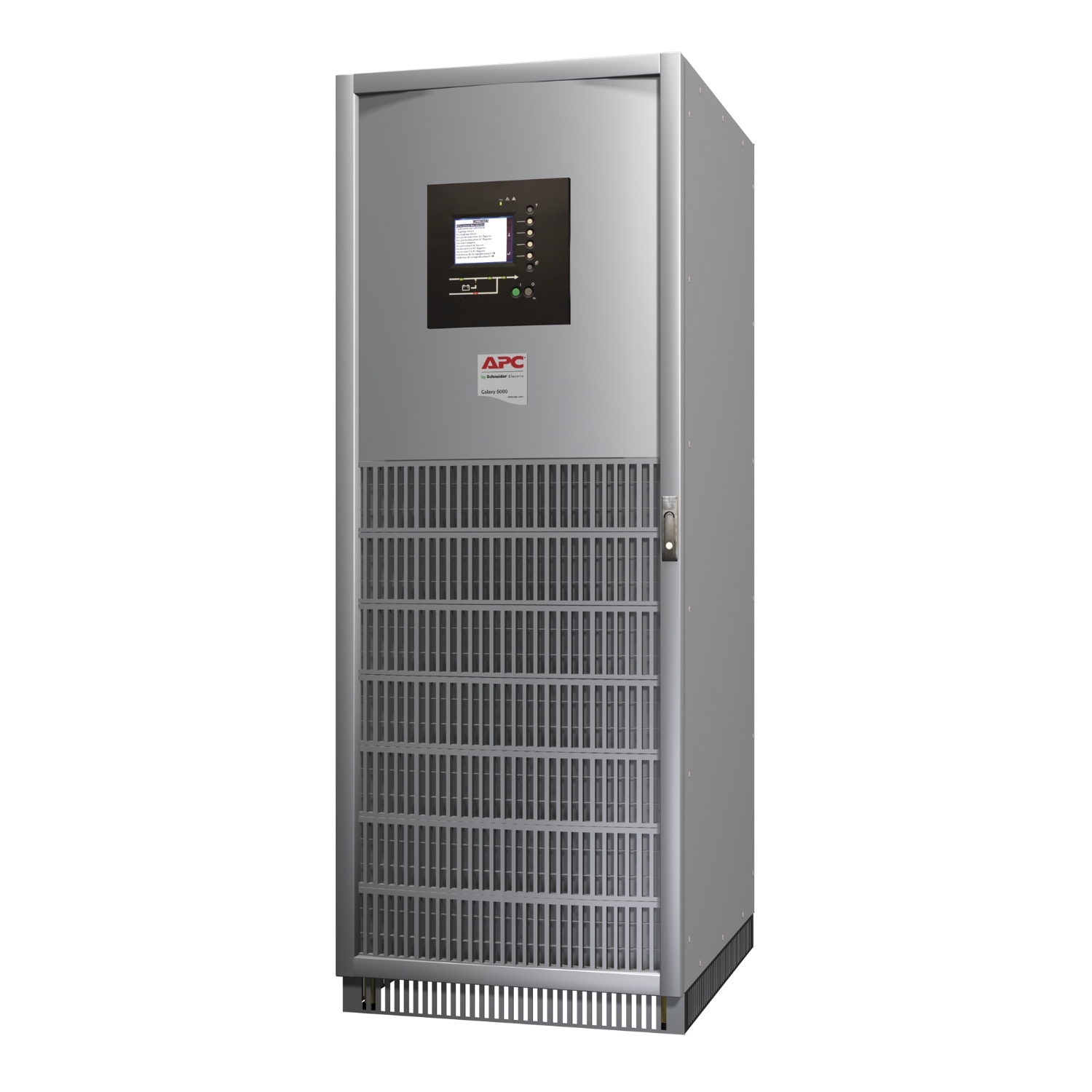

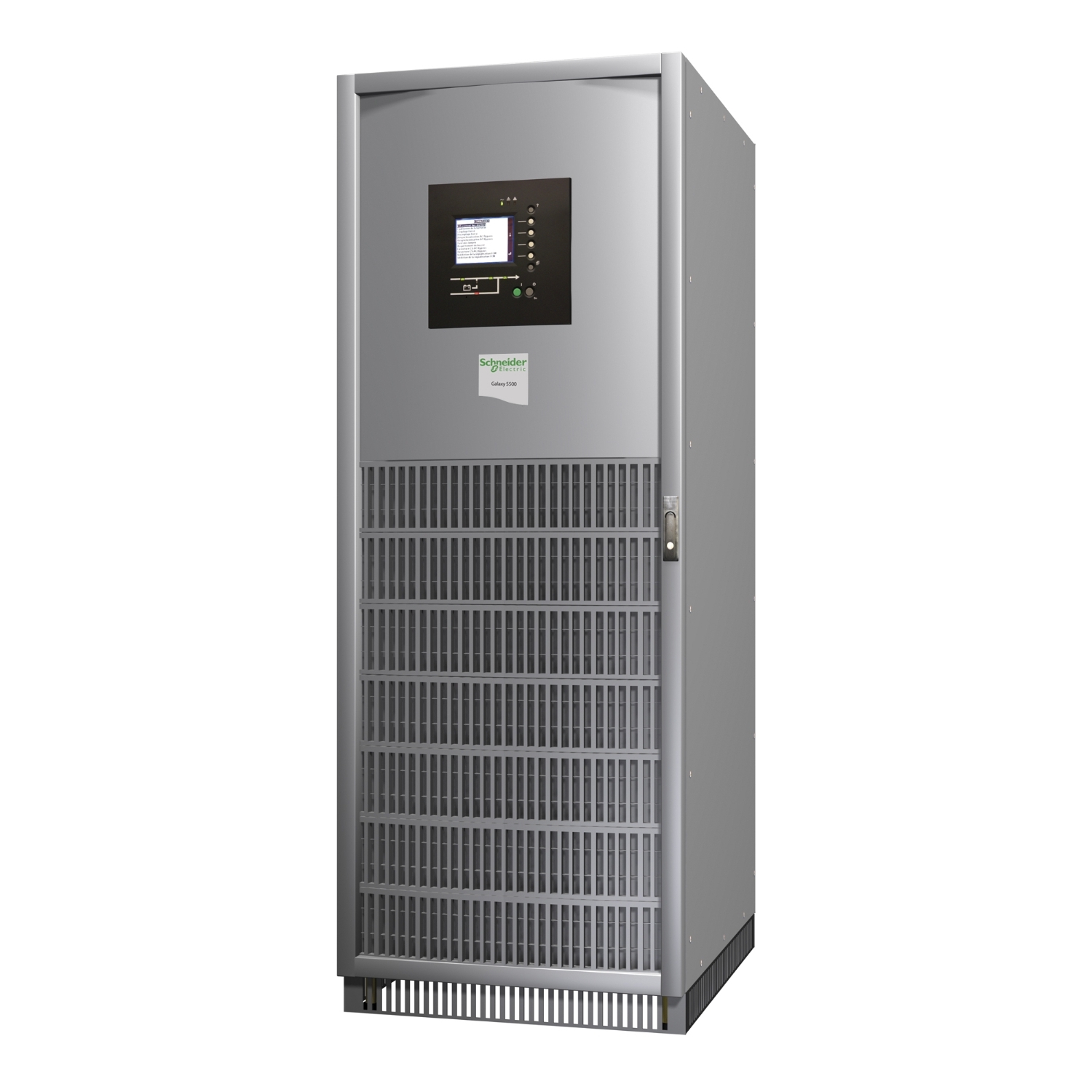

MGE Galaxy 5500 120kVA 400V Single UPS, Start-up 5x8
G55TUPSU120HINS Features
MGE Galaxy 5500 120kVA 400V Single UPS, Start-up 5x8
A versatile 3-phase UPS for facility, industrial and data center applications. Configurable system with a comprehensive range of accessories to meet your application demands.
Includes: Installation guide, Network Management Card, Start-Up Service, User Manual
Liên hệ
Giao hàng toàn quốc
Thanh toán khi nhận hàng
Hoàn 100% tiền nếu hàng không đúng như web
Output
Max Configurable Power (Watts) 108.0kWatts / 120.0kVA
Output Voltage Note Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Output Voltage Distortion Less than 2%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Output Frequency (not synced) 50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages 380, 415
Load Crest Factor 3 : 1
Topology Double Conversion Online
Waveform type Sine wave
Overload Operation 10 minutes @ 125% and 60 seconds @ 150%
Maximum Output Current 480
Output Voltage THD < 1% linear load and < 2.5% nonlinear load
Output Voltage Tolerance +/-1% static and +/- 5% at 100% load step
Bypass Built-in Maintenance Bypass, Built-in Static Bypass, Optional External Bypass
Input
Input frequency 45 - 65 Hz
Input voltage range for main operations 323 - 437 (380V), 340 - 460 (400V), 353 - 477 (415V)V
Input Total Harmonic Distortion Less than 5% for full load
Type of Input Protection Required gL fuse
Other Input Voltages 380, 415
Maximum Short Circuit Withstand (Icw) 20.0kAmps
Input Power Factor at Full Load 1.0
Batteries & Runtime
Battery type No internal battery - uses external battery system
Efficiency View Efficiency Graph
Communications & Management
Pre-Installed SmartSlot™ Cards AP9635
Control panel Multi-function LCD status and control console
Emergency Power Off (EPO) Yes
Available SmartSlot™ Interface Quantity 2
Physical
Maximum Height 1900MM, 190.0CM
Maximum Width 712MM, 71.2CM
Maximum Depth 855MM, 85.5CM
Net Weight 520.0KG
Shipping weight 540.0KG
Shipping Height 2030MM, 203.0CM
Shipping Width 980MM, 98.0CM
Shipping Depth 960MM, 96.0CM
Environmental
Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-999.9meters
Storage Temperature -20 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-12000meters
Audible noise at 1 meter from surface of unit 60.2dBA
Protection Class IP 20
